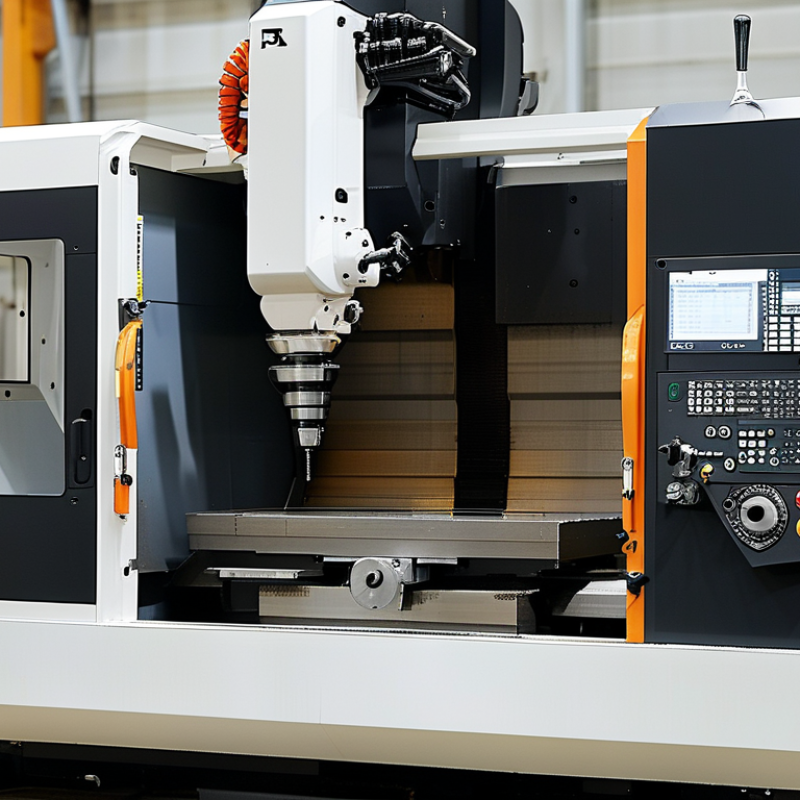

How to Choose the Best VMC Machine for Your Needs?

Choosing the best vmc machine begins with the part, not the brochure. A compact aluminum housing needs different capacity from a deep steel die. Consider workpiece dimensions, material hardness, tolerance, batch size, and future production plans. A machine that looks affordable may become expensive when tooling, probing, coolant, training, and downtime are included.

Industry data supports careful planning. Grand View Research reports that the global CNC machine market is expanding steadily, driven by automation, aerospace, automotive, and precision engineering demand. The International Federation of Robotics recorded 541,302 industrial robot installations worldwide in 2023, showing how strongly manufacturers are investing in connected production. These figures cover broader CNC and automation markets, not VMC machines alone. That limitation matters. A neat spreadsheet can still mislead.

Manufacturing expert Dr. T. R. Kurfess has often emphasized, “Manufacturing is the backbone of the economy.” His observation highlights a practical truth: machine selection affects quality, delivery speed, labor requirements, and business resilience. Look closely at spindle speed, torque curves, axis travel, rapid movements, tool capacity, control usability, and service response. Request real cutting demonstrations using your material and tooling. Check positioning accuracy under operating temperatures, not only showroom conditions. Speak with current users, too. Their maintenance stories may reveal more than a sales presentation.

The “best” vmc machine is rarely the most powerful model. It is the machine that repeatedly delivers your required parts, at an acceptable cost, with room for honest improvement. Reports: Grand View Research, CNC Machine Market; International Federation of Robotics, World Robotics 2024.

Table of Contents [Hide]

1 Define Your Machining Requirements and Production Goals

2 Compare VMC Types, Sizes, and Axis Configurations

3 Evaluate Spindle Performance, Accuracy, and Machine Capacity

4 Assess Control Systems, Tooling, Automation, and Safety Features

5 Calculate Total Cost, Maintenance Needs, and Supplier Support

Define Your Machining Requirements and Production Goals

Choosing a VMC begins with a production definition, not a catalog search. List the materials, part dimensions, tolerances, surface-finish targets, and monthly volume. A small aluminum bracket needs different spindle behavior than a hardened steel mold insert. Record the largest fixture, tool diameter, and workpiece weight. Measure twice. A cramped work envelope can erase an attractive purchase price.

Translate those details into measurable goals. Calculate target cycle time, setup frequency, machine utilization, and acceptable scrap rate. For tight tolerances, check thermal stability, positioning accuracy, probing options, and inspection procedures. High-speed cutting favors spindle rpm, while heavy steel removal demands torque and rigidity. Do not judge speed alone. A faster spindle may produce poor results with an unsuitable tool or weak fixturing. Include coolant delivery, chip evacuation, tool capacity, and axis travel in the comparison. These features affect real output, not brochure appeal.

I recommend requesting a test cut using your material and a representative drawing. Review cycle time, tool wear, surface finish, and repeatability across several parts. Ask how maintenance, calibration, training, and service response are handled. Those costs often appear after installation. My early estimates sometimes ignored loading time and small setup delays. That was a costly mistake. Leave capacity for future work, but avoid paying for unused capability. A clear production model makes the final machine choice more defensible.

Compare VMC Types, Sizes, and Axis Configurations

Choosing a VMC starts with the part, not the brochure. A three-axis machine suits plates, pockets, drilling, and routine prismatic work. Its X, Y, and Z travel remain easy to program and inspect. For angled holes or multiple faces, a fourth axis reduces manual repositioning. That can improve consistency, but it also adds setup cost and calibration work. More axes are not automatically better.

Size must follow the largest real job, plus clamping space and tool clearance. A 500 mm table may seem generous until a vise, tombstone, and probing system occupy it. Check spindle taper, maximum tool diameter, table load, and Z clearance together. A powerful spindle cannot rescue poor working volume. I have seen oversized machines waste floor space while smaller jobs suffered from long cycle times.

Five-axis VMCs reach complex surfaces with fewer setups. They are valuable for aerospace-style contours, impellers, and deep angled features. However, they demand stronger post-processing, simulation, and operator skills. Grand View Research’s 2024 CNC machine report projects strong market growth through 2030, reflecting wider automation adoption, not proof that every shop needs five axes. Gardner Intelligence’s 2024 World Machine Tool Survey also shows changing global machine-tool demand, so local workload matters more than market excitement. Compare three-year ownership cost, not only purchase price. Include maintenance, tooling, training, and inspection. The difficult question remains: will the extra axis earn its place every week?

How to Choose the Best VMC Machine for Your Needs? - Compare VMC Types, Sizes, and Axis Configurations

Comparison Dimension	3-Axis VMC	4-Axis VMC	5-Axis VMC	Compact VMC	Heavy-Duty VMC
Typical Machine Structure	Vertical spindle with X, Y, and Z linear movement.	Three linear axes plus one rotary axis, usually installed as a rotary table or indexer.	Three linear axes plus two rotary axes, either through a trunnion table or a swiveling rotary head.	Small-footprint vertical machining center designed for limited floor space and smaller workpieces.	Rigid vertical machining center with a reinforced column, base, table, and spindle system.
Typical Axis Configuration	X/Y/Z	X/Y/Z plus A or B rotary axis	X/Y/Z plus two of A, B, or C rotary axes	Usually X/Y/Z	Usually X/Y/Z; 4th-axis integration is commonly available
Common Travel Range	Approximately 500–1,500 mm in X, 350–750 mm in Y, and 400–750 mm in Z.	Approximately 600–1,500 mm in X, 400–750 mm in Y, and 450–750 mm in Z.	Approximately 300–1,200 mm in X, 300–700 mm in Y, and 300–700 mm in Z.	Approximately 300–800 mm in X, 250–500 mm in Y, and 300–500 mm in Z.	Approximately 1,000–2,500 mm in X, 600–1,000 mm in Y, and 600–1,000 mm in Z.
Typical Table Size	Approximately 600 × 400 mm to 1,600 × 700 mm.	Approximately 700 × 450 mm to 1,600 × 700 mm, depending on rotary equipment.	Approximately 400 × 400 mm to 1,250 × 800 mm.	Approximately 400 × 250 mm to 800 × 450 mm.	Approximately 1,200 × 600 mm to 2,500 × 1,000 mm.
Typical Workpiece Size	Small to large prismatic parts that can be machined from several setups.	Parts requiring machining around one additional side or multiple indexed faces.	Complex parts requiring access to multiple faces in one setup, such as impellers, molds, and aerospace components.	Small components, prototypes, electronic parts, medical parts, and light-duty tooling.	Large molds, dies, structural components, plates, housings, and parts made from difficult-to-cut materials.
Spindle Speed Range	Approximately 6,000–15,000 rpm for general-purpose machining.	Approximately 8,000–15,000 rpm for general production work.	Approximately 10,000–24,000 rpm when complex surfaces and smaller tools are common.	Approximately 8,000–20,000 rpm, depending on material and spindle design.	Approximately 4,000–12,000 rpm, with emphasis on torque and material removal.
Typical Motor Power	Approximately 7.5–22 kW.	Approximately 11–30 kW.	Approximately 11–30 kW, often paired with high-speed or high-torque spindle options.	Approximately 3.7–11 kW.	Approximately 18.5–45 kW or higher, depending on machine size and cutting requirements.
Best Suited Materials	Aluminum, steel, stainless steel, cast iron, plastics, and general engineering materials.	Aluminum, steel, stainless steel, cast iron, and parts requiring indexed machining.	Aluminum, titanium alloys, stainless steel, nickel alloys, composites, and hardened materials with suitable tooling.	Aluminum, brass, plastics, mild steel, and other materials used for smaller components.	Steel, cast iron, stainless steel, titanium alloys, nickel alloys, and other materials requiring high cutting forces.
Setup Requirements	More setups may be required for multi-sided parts.	Fewer setups than a 3-axis machine because one rotary axis can expose additional faces.	Often completes complex parts in one setup, reducing repositioning and alignment work.	Generally simple installation, but workholding and tool capacity may be limited.	Requires a properly prepared foundation, adequate floor space, and higher power capacity.
Programming Complexity	Low to moderate; suitable for standard 2.5D and 3D toolpaths.	Moderate; rotary-axis indexing and post-processor compatibility must be considered.	High; simultaneous multi-axis programming, collision avoidance, and machine simulation are recommended.	Low to moderate; usually suitable for straightforward production and prototyping workflows.	Moderate to high; cutting parameters, rigidity, tooling, and material-removal rates require careful control.
Production Strength	Excellent for general-purpose production, job shops, and repeatable prismatic parts.	Strong for medium-volume parts that benefit from indexed machining and reduced handling.	Excellent for high-value complex parts, provided programming and fixturing are properly managed.	Suitable for prototypes, small batches, and light-to-medium production.	Suitable for high material-removal rates, large parts, long production cycles, and demanding cutting loads.
Primary Advantages	Lower purchase cost, simpler operation, broad application range, and easier maintenance.	Improved access to multiple faces, fewer setups, and better positional consistency.	Reduced setups, improved access to complex surfaces, and lower risk of cumulative fixture errors.	Lower space and utility requirements, faster installation, and lower operating cost.	High rigidity, better vibration control, increased cutting stability, and greater workpiece capacity.
Primary Limitations	Multiple setups may increase handling time and introduce alignment errors on complex parts.	Higher cost and more demanding workholding, programming, and rotary-axis maintenance.	Higher purchase cost, greater programming complexity, and more demanding operator training.	Limited work envelope, lower cutting capacity, and restricted tooling or fixture space.	Larger footprint, higher installation cost, slower acceleration, and greater energy consumption.
Recommended Buyer Profile	Job shops, general manufacturers, maintenance departments, and first-time VMC buyers.	Manufacturers producing multi-sided parts that need fewer setups without full 5-axis capability.	Aerospace, medical, mold, die, energy, and precision manufacturers producing complex geometry.	Prototype shops, laboratories, education facilities, and manufacturers with limited floor space.	Heavy fabrication, mold and die production, energy equipment, and large-part manufacturers.
Key Selection Check	Confirm work envelope, spindle torque, tool capacity, and fixture compatibility.	Confirm rotary-axis load capacity, through-hole size, indexing accuracy, and post-processor support.	Confirm simultaneous-axis capability, collision simulation, rotary-axis accuracy, and machine kinematics.	Confirm maximum workpiece dimensions, table load, electrical requirements, and chip-management capacity.	Confirm foundation requirements, table load, spindle torque, coolant capacity, and chip evacuation.

Selection Note The specifications shown are representative industry ranges rather than universal limits. Actual travel, table size, spindle performance, load capacity, accuracy, and automation options vary by machine design and configuration. Select a VMC based on the largest workpiece, required tolerances, material, production volume, available floor space, and future expansion needs.

Evaluate Spindle Performance, Accuracy, and Machine Capacity

Choosing the best VMC machine starts with spindle performance, not advertised speed alone. A higher RPM is not always better. Check the torque curve at the speeds your materials require. Aluminum may need high speed, while steel often demands steady torque at lower RPM. Examine spindle runout, taper condition, cooling, and tool retention. Even a small runout error can leave visible marks on a precision bore.

Accuracy must be verified under real cutting conditions. Ask for positioning accuracy and repeatability data, then inspect how the machine behaves after several hours of operation. Thermal growth can shift dimensions as the spindle warms. A test cut tells more than a brochure. Measure a bored hole, a milled slot, and a circular interpolation pattern. I have seen excellent initial results change after heat built up. That assumption can fail.

Machine capacity should match your largest routine job, not an occasional oversized project. Check table dimensions, maximum workpiece weight, X, Y, and Z travel, and clearance around the tool changer. A heavy fixture can consume more space than expected. Confirm spindle motor power, tool length limits, chip evacuation, and access for loading parts. Leave practical room for clamps and inspection tools. Measure twice. A slightly larger work envelope may improve workflow, while excessive capacity can increase cost, floor space, and energy use without improving daily output.

Assess Control Systems, Tooling, Automation, and Safety Features

Choosing the best VMC machine starts with its control system, not its paint or advertised speed. During shop-floor evaluations, I check screen response, program editing, alarm clarity, and operator access. A clear interface reduces mistakes during setup. It also shortens training time.

Tooling decisions should match your real work. Review spindle taper, tool capacity, holder compatibility, and changeover time. Measure the largest parts you actually produce. Small details matter, such as chip clearance around fixtures and easy access to the workholding area. I once focused too heavily on spindle power and underestimated setup delays. That mistake was expensive. It changed how I compare machines.

Automation can improve consistency, but only when the workflow is stable. Consider pallet changing, robotic loading, probing, and tool-life monitoring. Ask how quickly operators can recover from a stopped cycle. A system that needs specialist support for every interruption may reduce productivity. Safety features deserve equal attention. Check door interlocks, emergency stops, guarding, light curtains, and maintenance access. Operators should see the cutting area without opening unsafe panels. Risk assessments should include unusual tasks, such as clearing chips or correcting a work offset. Documentation should be practical, current, and easy to understand. Test these features in person when possible. Brochures rarely show the awkward moments.

Calculate Total Cost, Maintenance Needs, and Supplier Support

Choosing the best VMC machine requires more than comparing purchase prices. Calculate total cost over five to ten years. Include tooling, electricity, coolant, software, installation, operator training, and financing. A machine costing 15% less may require expensive imported parts or longer commissioning. Request a written estimate for annual maintenance and common replacement items.

Maintenance deserves close attention. The U.S. Department of Energy’s Operations & Maintenance Best Practices Guide reports that predictive maintenance can reduce maintenance costs by 25–30% and downtime by 35–45%, although results vary by factory. Ask whether the VMC supports vibration checks, spindle temperature monitoring, alarm history, and remote diagnostics. Inspect the maintenance interface yourself. Is it clear at 6 a.m.?

Supplier support can determine production stability. Measure response time, technician availability, spare-parts stock, training hours, and warranty exclusions. A useful calculation is downtime cost per hour multiplied by expected repair hours. Then compare that figure with the supplier’s service contract. Do not trust vague promises. Get service levels in writing. I once treated fast delivery as the main advantage; that decision looked cheaper until a spindle fault stopped production for four days. The lesson is uncomfortable: quoted price is only one assumption. Review it against your workload, local support capacity, and the machine’s real duty cycle. Reports from the International Federation of Robotics also show continuing growth in factory automation, but higher automation does not remove maintenance risk. It can make weak support more expensive.

How to Choose the Best VMC Machine for Your Needs?

Five-year total cost of ownership comparison for generic vertical machining center configurations. Estimates are in USD and include acquisition, installation, tooling, energy, maintenance, and supplier-support costs.

How to read the chart: A lower total cost is not always the best choice. Consider machining volume, required accuracy, maintenance planning, spare-parts availability, training, response time, and expected downtime before selecting a VMC.
